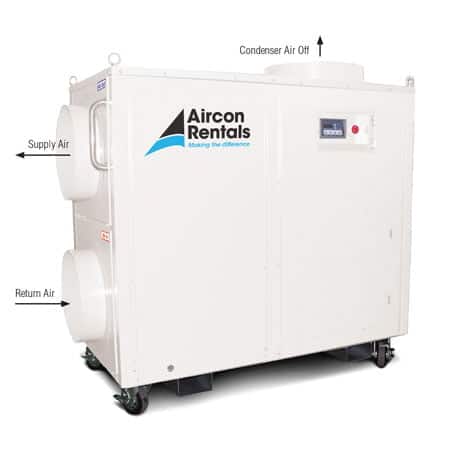

24kW Package Unit


Providing strong, cool air efficiency and mounted on sturdy castors, which makes manoeuvring through standard doorways and into elevators an ease.

Suitable for:

  • Data centres / Server rooms
  • Warehouses
  • Manufacturing
  • Event / marquee cooling
  • Defence Establishments
  • Conference centres

Technical Info

Operating Range (°C) 18-45
Current Consumption (Amp) 21
Power Consumption (kW) 13.8
Refrigerant R-410A
Area (m2) (maximum) 210

Noise levels:
1m – 70.2 dB
5m – 67.4 dB
Background dB was 54.7 dB

Power Requirements

Capacity (kW) 24
Power Supply (Hertz, Phase, Volts) 50 / 3 / 380
Electrical Connection 3 Phase, 32 Amp, 5 pin

Physical Info

Height (mm) 1490
Width (mm) 775.2
Depth (mm) 1580
Weight (kg) 345

Accessories

  • 3 Phase Distribution Boards
  • 3 Phase Cabes
  • Single Lane Cable Crossover
