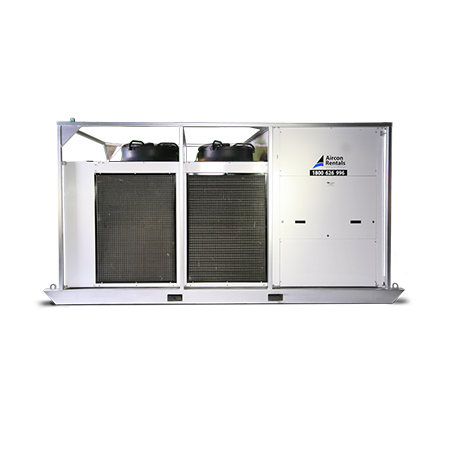

160kW Package Unit


The 160kW rentals air conditioner can operate in extreme conditions from -2 to 45 degrees can run as low as a 40kw unit with comparable airflow and will provide reverse cycle comfort for any condition. The units require a 3 phase power outlet (160amp circuit breaker and hard wired), and can be stacked 2 high, to provide 320kW of power, with the footprint of 4790 x 2265mm. The unique design provides the ideal solution to air conditioning in tight places and can be constantly monitored off site, by the on-board telemetry. This unit can produce data indicating how the unit is performing externally and can be manipulated off site by a technician, a feature that is unique to Aircon Rentals equipment. These units have been designed to fit into a standard shipping container and optimise space, as road freight transport.

SKU: 1PAC-0160 Category:

Technical Info

Total Cooling Capacity (kW): 158.7
Heating Capacity (kW): 152.5
Stages: 4
Air Flow (l/s): 1000
Refrigerant: R407C

Power Requirements

Power Requirements: 3 Phase 160 Amp
C/BHard Wire
Required Circuit Breaker (amps): 160

Physical Info

Height (mm): 2250
Width (mm): 2290
Length (mm): 4360
Weight (kg): 1800

Accessories

  • 3 Phase Cables
  • Flexible Ductwork
  • Framed Lattice Panels
  • Fabric Ductwork
  • Condensate Pumps
  • 400Amp 3 phase extension leads
  • Data Loggers
  • Flow Hood
  • Mining Flex
  • Telemetry Unit

Features

  • Variable Speed Drive Control allows for the fans speed to be controlled
  • Networkable – allowing for multiple units to be connected together, working as one
  • Remote Setpoint Adjust – giving you the ability to just the thermostat remotely
  • Programmable Direct Digital Control system
  • Electronic Thermostat
  • Time Clock
  • Three Phase Power Required
