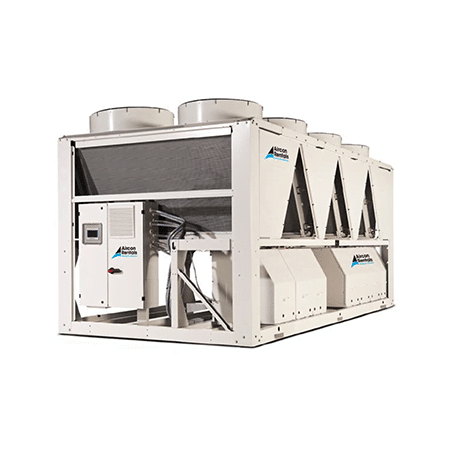

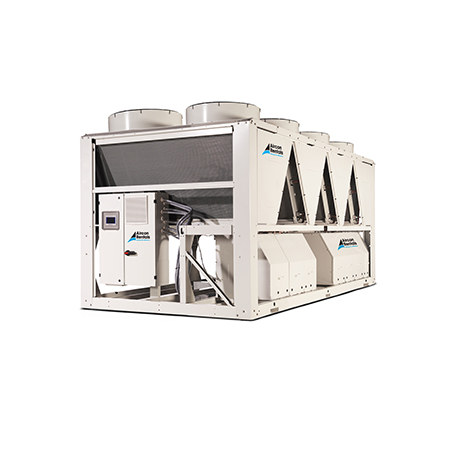

300kW Air Cooled Chiller – with Negative Temperature capability


The 300kW Chiller is Air cooled, with leaving water temp of -12, and has 5 low noise scroll compressors that provide variable capacity control. This chiller comes complete with an onboard variable speed hydronics kit, with a by pass for use with an external pump. Variable speed flying bird fans, for quieter operation. Fitted out with camlock fittings for ease of connection to your system.



SKU: 1CHL-0300-1 Categories: ,

Technical Info

Total Cooling Capacity (kW): 291.4
Total KW 299.4
Refrigerant: R410-A

Power Requirements

  • Unit Voltage V-Ph-Hz 400-3-50
  • Standby Power: 0.3405kW
  • Minimum Voltage: 360 Volts
  • Maximum Voltage:440 Volts
  • Power Factor: 0.88
  • Nominal running amps 185A

Physical Info

Height (mm): 2590
Width (mm): 2440
Length (mm): 4000
Weight (kg): 2300

Features

  • Leaving water temp of -12°C capability
  • Non-ozone depleting R410A refrigerant, Chlorine-free, ODP=0
  • High-efficiency scroll compressors
  • Low noise scroll compressors with low vibration levels
  • Low-noise fans enjoy quieter operation and free of intrusive low frequency noise

Accessories

  • Chilled Water Pump
  • Camlock Flexible Hoses
  • Remote Monitoring
  • Power Cables
