Hire 800kw air cooled chiller

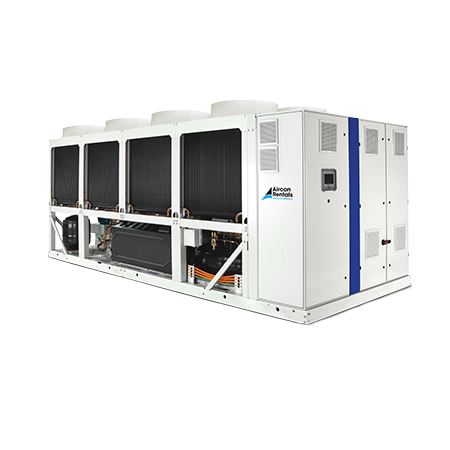

800kW Air Cooled Chiller



SKU: 1CHL-0800 Categories: ,

Technical Info

Cooling Capacity: 785.2 kW
IPLV.SI (1) kW/kW 5.847 kW
Cooling Efficiency (COPR) (1) 3.026 kW
Unit Power Input (1) 259.5 kW
Minimum Capacity (3) 133.1 kW
Maximum Capacity 785.2 kW

Power Requirements

Unit Voltage: 400-3-50 V-Ph-Hz
Standby Power: 0.4200 kW
Power Factor: 0.42

Amps
Circuit 1Maximum Current: 625
Start Up Current: 625
Current at Eurovent Conditions: 428

Physical Info

Shipping Weight: 6109 kg
Operating Weight: 6235 kg
Unit Length: 673 mm
Unit Width: 2253 mm
Unit Height: 2297 mm

Features

  • Bacnet over IP
  • Low noise level
  • Energy management aodule
  • 50°C High ambient temperature
  • -10°C Low temperature

Accessories

  • Chilled & Condenser Water Pump
  • Power Cables
  • Camlock Flexible Hoses
  • Remote Monitoring
