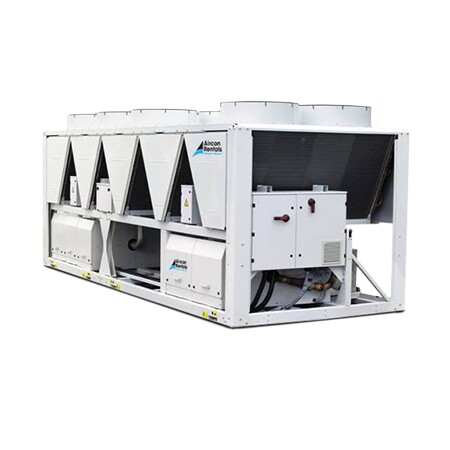

500kW Air Cooled Heat Pump Chiller


Designed to meet all requirements, this unit uses the best technologies available: twin-rotor screw compressors with a variable capacity valve, low-noise generation IV Flying Bird fans made of composite material, aluminium micro-channel heat exchangers (MCHX) and touch-screen control systems.

Additional Benefits

  • Easy & Fast to Install
  • Economical operation
  • Environmental care
  • Low operating sound levels
Downoad Spec Sheet



Technical Info

Performance Information
Cooling Capacity: 488.2 kW
Total Compressor Power: 141.3 kW
Total Fan Motor Power: 14.3 kW
Total Unit Power: 156.77 kW
Efficiency: 3.11 kW/kW
A-Weighted Sound Power Level: 96 dbA
Refrigerant: R134A

Evaporator Information
Fluid Type: Fresh Water
Fouling Factor: 0.0180 (sqm-K)/kW
Number of Passes: 2
Leaving Temperature: 7 °C
Entering Temperature: 12 °C
Fluid Flow: 23.34 l/s
Total Pressure Drop: 36.3 kPa

Condenser Information
Altitude: 0 m
Number of Fans: 9
Total Condenser Fan Air Flow at 20°C: 40625 L/s
Entering Air Temperature: 35.0 °C

Power Requirements

Unit Voltage: 400-3-50 V-Ph-Hz
Standby Power: 0.20 kW
Minimum Voltage: 360 Volts
Maximum Voltage: 440 Volts
Power Factor: 0.88

Physical Info

Height (mm): 2297
Width (mm): 2253
Length (mm): 5992
Weight (kg): 5174

Features

  •  Easy and fast installation
  •  Very economical operation
  •  Environmental care
  •  Low operating sound levels

Accessories

  •  Cable Cross Over – Lane
  •  Framed Lattice Panels
  •  Distribution Boards
  •  Chilled Water Pipe work
  •  Chilled Water Pumps
  • Chilled Water Strainer
