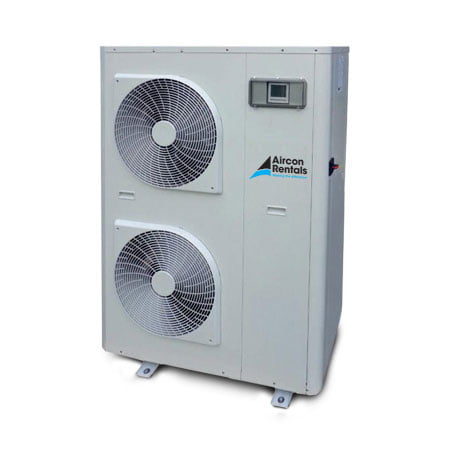

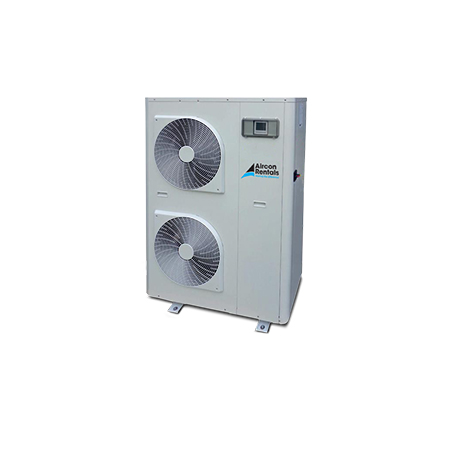

21kW Air Cooled Heat Pump Chiller


Our 21kW liquid chiller/heat pump range was designed for commercial applications such as the air conditioning of offices, hotels and large industrial sites.

The unit integrates the latest technological innovations: Non-ozone depleting refrigerant R410A, DC inverter twin-rotary compressors, low-noise variable speed fans and microprocessor control.

Download Spec Sheet



Technical Info

Cooling Capacity (kW): 15-18
Heating Capacity (kW): 21.1
Sound Power Level (db(A)): 74
Capacity Control (min.): 41%
Air Heat Exchanger: Grooved copper tubes, aluminum fins
Refrigerant: R410A
Fans: 2

Power Requirements

Nominal power supply: 400-3+N-50
Voltage range: 360-440
Nominal unit current drawn: 14.3
Maximum unit power input: 12.4

Physical Info

Height (mm): 1579
Width (mm): 584
Length (mm): 1109
Operating Weight (kg): 200

Accessories

  •  Three Phase Extension Leads

Features

  •  Quiet in operation
  •  Easy and fast installation
  •  Economical operation
  •  Environment care
  •  Superior reliability
  •  NHC Control
  •  Inverter technology compressor and fans
