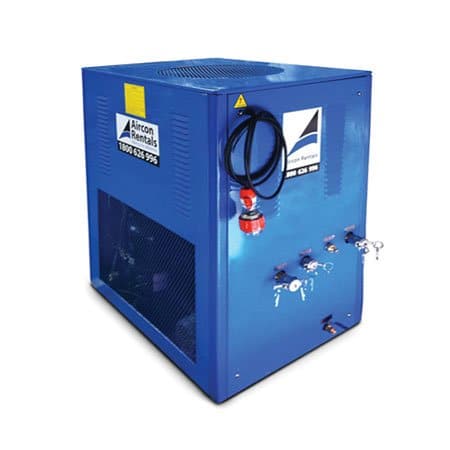

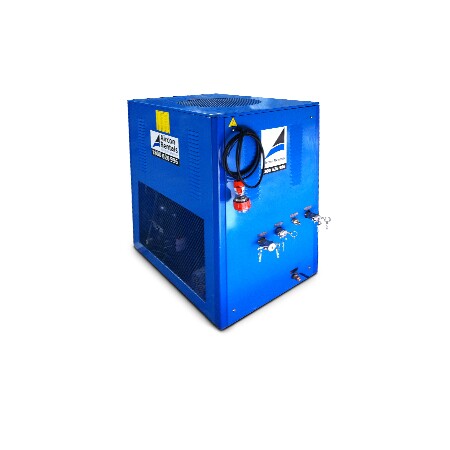

10kW Industrial Chiller


A small dedicated 1 stage 10kW industrial chiller. Easily transportable and installed.



SKU: 1CHL-0010 Categories: ,

Technical Info

Total Cooling Capacity (kW): 10
Type: Open Tank
In/Out Temp: 12-7
Flow rate l/s: 0.44
Mobility: Casters with Brake
Stages: 1

Power Requirements

Power
Voltage 415
Phase 3
Amps 8 amps
Connections 32 amp 5 Pin
Lead length 5 mtr

Connections
In/ Outlet (mm): 32 Camlock
Overflow (mm): 32 Camlock
Drain: 15 mm Hose
Cold make up water: 15mm Hose

Physical Info

Height (mm): 1350
Width (mm): 720
Length (mm): 1000
Weight (kg): 200

Features

Accessories

  •  Chiller water pipe work
  •  Three Phase Extension Leads
